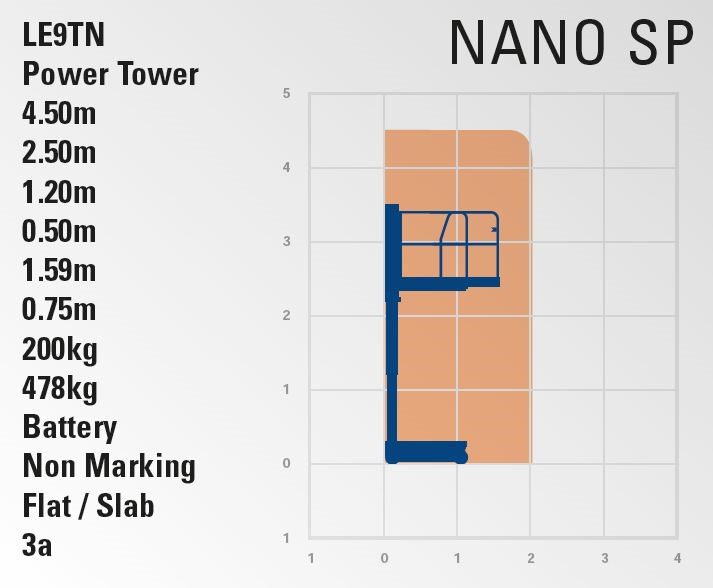

Dimensions
Basket Dimensions | Length | Width | Height | |
---|---|---|---|---|
Metrics | 1.00m x 0.73m | 1.22m | 0.75m | 1.59m |
Nano lift Standard features
- Fully self-propelled, even when fully elevated
- Simple intuitive joystick
- Zero turning radius
- Only 500kg weight, able to work on raised access flooring (Kingspan® approved)
- Can be transported by standard 500kg tail-lift vehicles
- Ultra compact, only 750mm x 1200mm footprint
- Large 1500mm x 700mm platform size (cantilever extended) 500mm cantilever deck for outreach over obstructions
- Automatic pothole protection
- Fail-safe hydraulic circuit complete with check valve on lift cylinder
- Automatic pothole protect ion on elevation
- Tilt sensor complete with alarm and cut-out
- Automatic basket load sensing, complete with alarm and cut-out
- Automatic elevated drive-speed reduction
- Emergency descent from basket and ground
- Audible ascent and descent drive alarm
- Amber flashing beacon
- Automatic dynamic parking brake
Nano lift special features

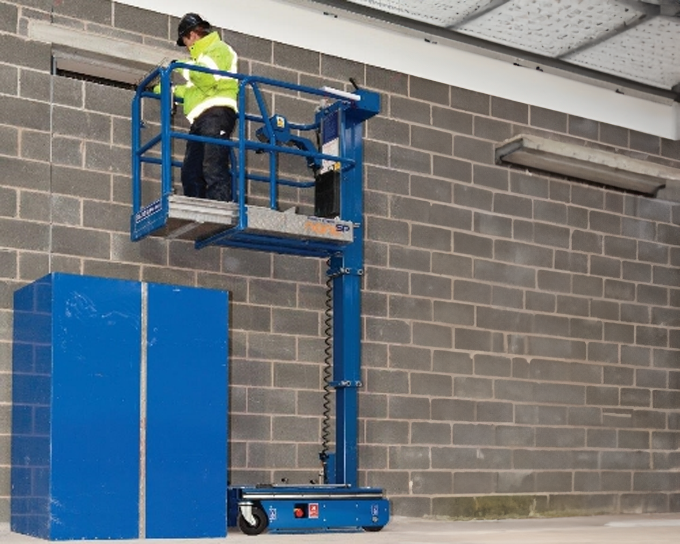

The Power Tower Nano SP is the ultimate in self-propelled, low-weight, low level access. The self-propelled platform provides the user with a tiny working footprint of 1.2m x 0.75m (closed) and a large platform of 1.5m x 0.72m (deck extended).
It can also be used on raised access flooring due to its low weight. The Nano SP is much safer than more traditional methods such as climbing steps or podiums that can clause slips and trips to both the user and those around them
You’re always safe and fully guarded in the basket from the ground up
